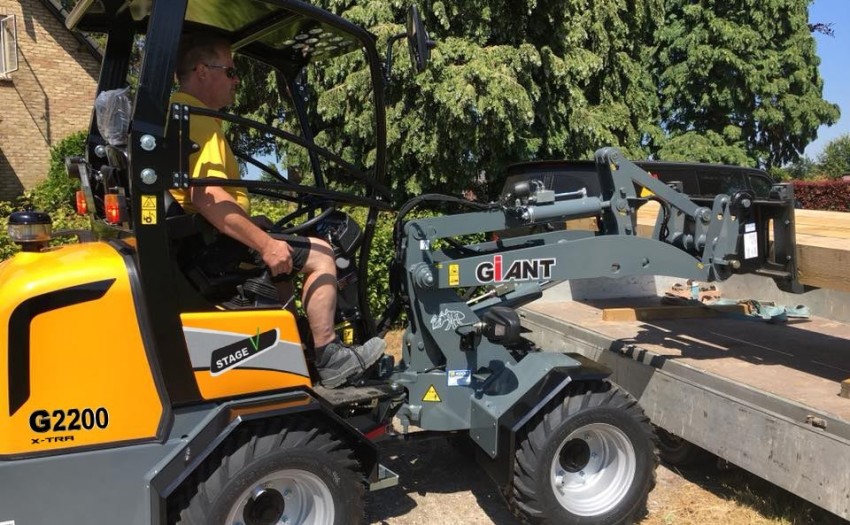

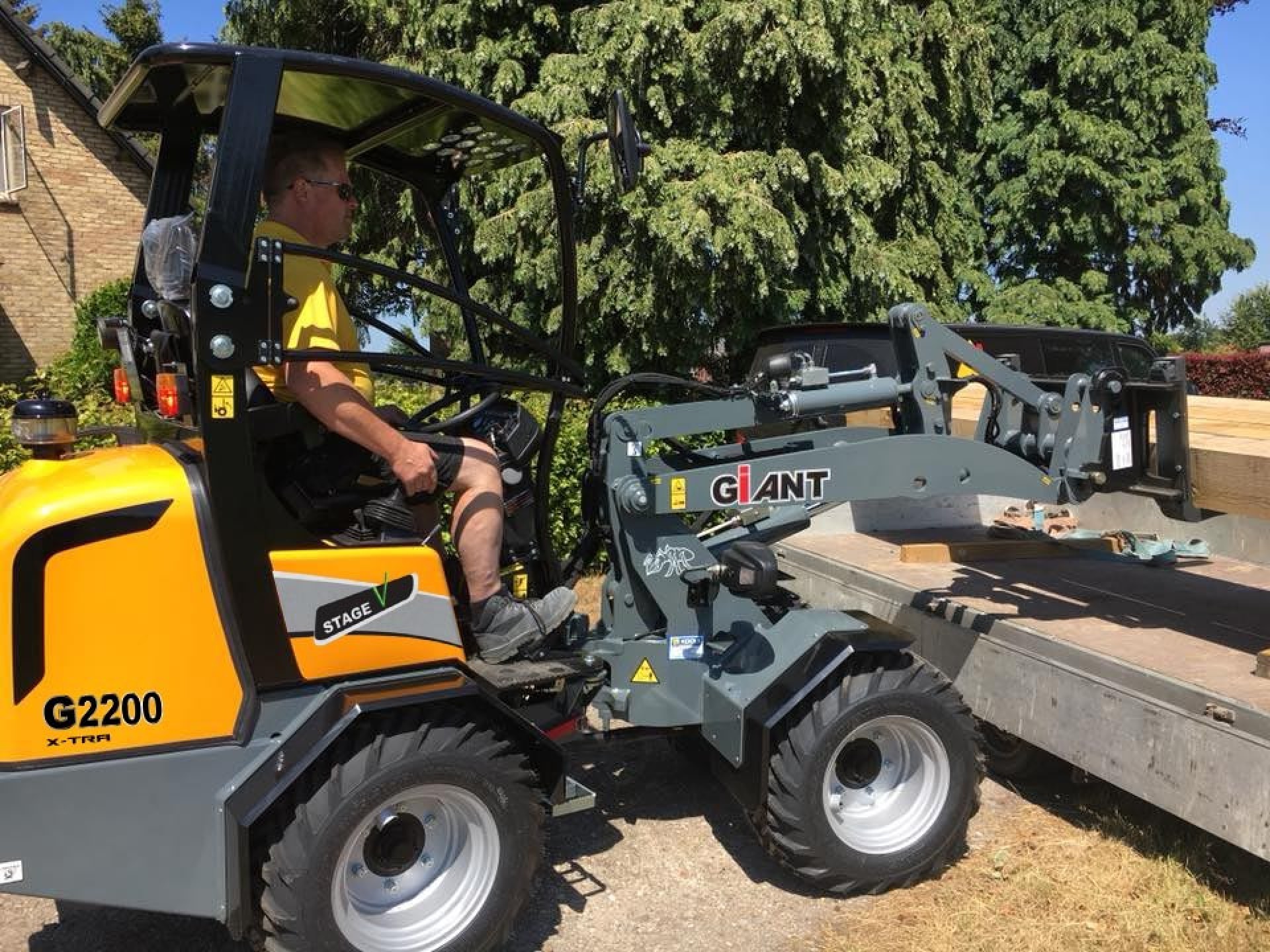

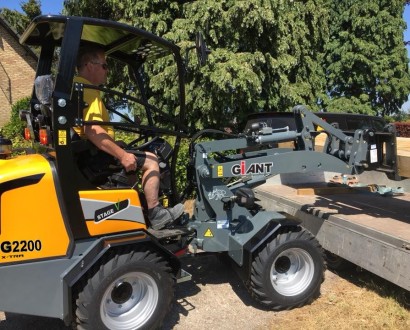

The GIANT G2200 (Giant G2200 X-tra) will be the successor of the Giant D337T. The machine will enjoy a Stage V diesel engine as an upgrade. Also called Phase V diesel engine. These diesel engines are equipped with a particulate filter to reduce emissions.
This new Giant articulated loader is equipped with a suspension seat, which increases the ease of use. In addition, the controls are within reach. For example, the forward and reverse is electronically controlled via a switch on the joystick. The operation of the third function is controlled in the same way via the joystick.
This Giant shovel achieves a lifting height of 2825 mm. The tipping load of this machine is around 1450 kilograms, and has a lifting force of 1650 kilograms. In addition, the lifting arm of the articulated loader is equipped with two work lights. The machine itself weighs around 2200 kilograms. The articulated loader has a self-locking differential on both axles, and is equipped with a drum brake.
In addition to a pallet fork and a sandbox, the Giant shovels can be equipped with various attachments. For example, there are sweeping brushes, gritting buckets, stone clamps, soil buckets, pelican bins, feed scrapers, manure scrapers, bale clamps, and many other tools that you can connect to the Giant. The hydraulic quick-change system, which can be operated with a stick, makes finishing and attaching attachments a piece of cake.
The shovel or articulated loader is an essential part of the company, and it runs for many hours at many animal husbandry companies. For example, it feeds on food, removes the manure or sweeps the street.
This machine will be available soon, if desired with pallet forks, a container or other attachments.
Different types:
- Giant G2200 (standard)
- Giant G2200E (electric version)
- Giant G2200 X-tra (lowered boom, higher lifting force, higher tipping load)
- Giant G2200E X-tra (electric shovel with lowered boom, higher lifting force, higher tipping load)
