Productinformation
Properties

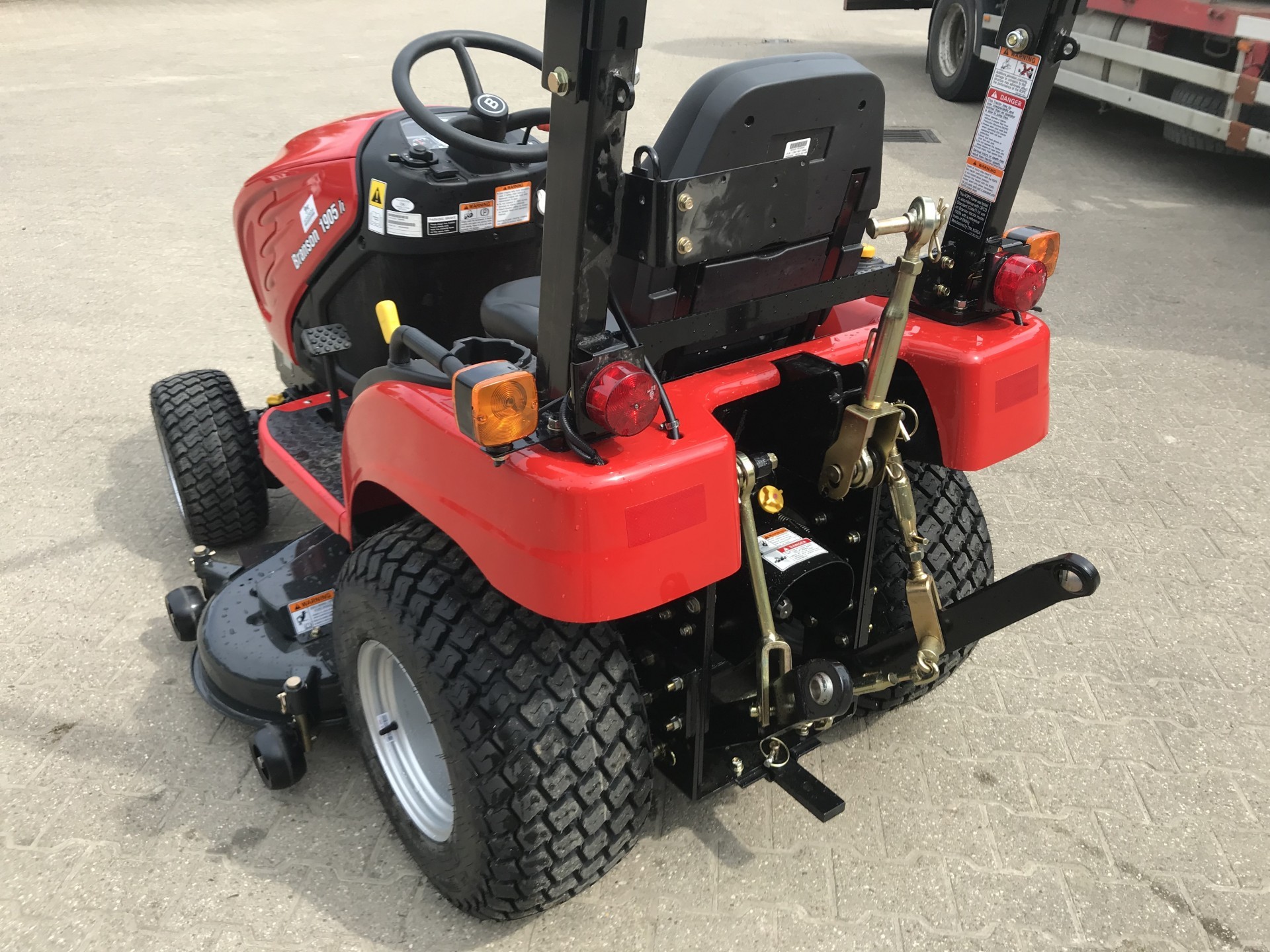

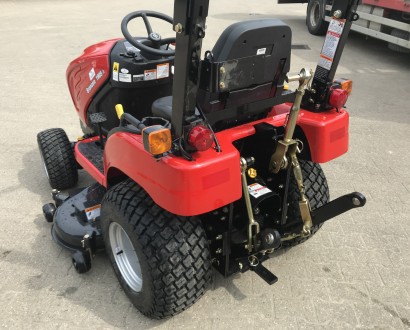

Specifications 3-cylinder water-cooled Yanmar 4-stroke diesel engine Engine type 3TNV74F Max. power 19/14.2Ps/Kw Displacement 993cm³ Indirect injection Completely tiltable engine hood Air filter with maintenance indicator Fuel tank capacity 25L Fuel consumption Ltr/Hp/hour Drive system Hydrostatic, 2 ranges Max. speed (depending on wheels): Km/h Oil-immersed brakes Selectable 4-wheel drive Rear axle differential lock Hydraulic system Oil flow 15.8L/min at 145Bar Lifting capacity 650Kg Standard 3-point hitch cat. 1, including top link Steering valve control Steering Hydraulic steering Steering angle 45° PTO (Power Take-Off) 540 rpm, shaft 13/8 - 6 spline Mid PTO 2500 rpm Optional wheels Turf tire profile: 18X8.50-10, 26X12.00-12 Industrial tire profile: 18X8.50-10, 26X12.00-12 Equipment Lighting according to Dutch standards Dynamo Battery 12Volt, 60Ah Fuel level gauge Engine temperature gauge Hour meter Indicator lights: Engine oil pressure, Coolant temperature, and Charging current Tachometer Safety belt Tow hitch Adjustable comfort seat 7-pin trailer socket Dimensions with turf tires Wheelbase 1350mm Width 1130mm Length 2394mm Ground clearance 210mm Height including roll bar 2200mm (foldable) Weight 650Kg Optional 1x double-acting control valve connections at the rear of the tractor
